Lever Bore Gauge

Mã sản phẩm:  XTL
Nhà sản xuất:  Bowers
Xuất xứ:  UK
Giá: 00 vnđ
Tình trạng:  Sale

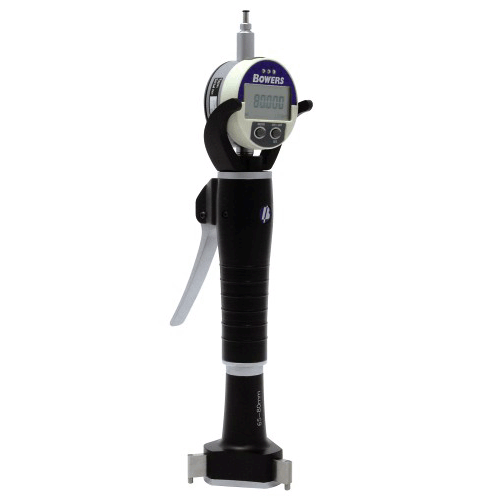

XTL Lever Bore Gauge

The robust new Bowers XTL Lever range is perfect for vertical bore measurement, providing accurate and repeatable bore gauging under inspection department or shop-fl oor conditions. The XTL has a simple ergonomic action and can be fi tted with a wide variety of analogue and digital indicators or even transducer probes. The range can be provided with IP65 rated digital indicators, rendering it resistant to coolant, water and airborne particles. A ‘wireless’ gauge module is also available, enabling cable free communication with remote data collectors, PCs etc. The cost-effective new XTL boasts hardwearing extended travel carbide measuring anvils and is able to measure diameters up to 300mm.

Features:


  •   Measuring range 6-100mm (diameters above 100 on request)
  •   Excellent for vertical bore measurement
  •   Simple 2-button operation
  •   3 preset memories
  •   RS-232 output
  •   Self-centering heads
  •   Constant measuring pressure
  •   Fast, accurate measurement
  •   Resolution 0.001mm (0.00005”)
  •   Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  •   Blind bore measurement above 12.5mm (0.500”)
  •   Extensions available for deep hole measurement
  •   Setting rings included with individual instruments and sets
  •   UKAS certifi cates supplied as standard with all setting rings
  •   UKAS certifi cates supplied with all gauges
  •   Serial number on all gauges and measuring heads
  •   Heads with special anvils available to suit specifi c customer requirements (e.g. Threads,  grooves, 2-point, spherical, splines etc)
  •   Bore gauges manufactured according to DIN 863, part 4
