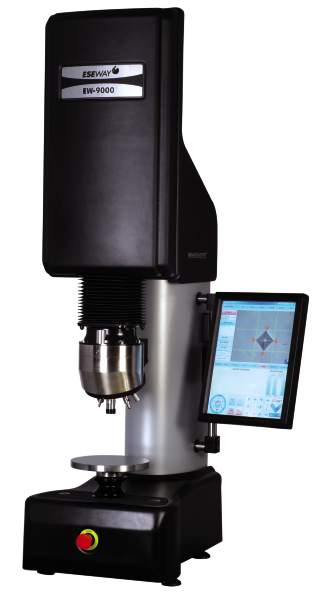

Máy đo độ cứng EW-9000 Series

Mã sản phẩm:  EW-9000
Nhà sản xuất:  Rontgen
Xuất xứ:  Đài Loan
Giá: 00 vnđ
Tình trạng:  Còn hàng


  • Rockwell, Superficial Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT and HBT scales

  • Superior range of test loads/force application ranging from 1kgf to 3000kgf (over 3 models)

  • Fixed work piece position (no spindle)

  • Descending test head with automatic work piece detection

  • Free definable, manual or motorised 6 position turret for objectives and indenters of choice

  • High definition optical system for images of 0.7x to 1000x magnification

  • PC based hardness testing firmware and database file system as standard

  • Large, adjustable 15’’ industrial touch screen (or mouse with normal 22’’ LCD screen)

  • Automatic or manual focus, manual or fully automatic indent measurement standard

  • Built-in hard disk offers nearly endless file storing, standard

  • LAN, WLAN, USB-2, RS-232, Printer and DVI connectivity, standard

  • On board built-in driver for (optional) motorised X-Y stage, standard

  • Free definable test patterns case depth, traverse, free style, etc., optional

  • Machine covers made of shock, damage and fire proof recyclable materials

  • Large range of optional accessories

  • Large test piece accommodation H=300mm, D=220mm

  • 3 years free firmware upgrade, standard

  • Designed and manufactured in The Netherlands, 1 year limited guarantee

Optical Hardness Testing Methods

  • Vickers (HV), EN ISO 6507, ASTM E 92

  • Knoop (HK) ISO 4545, 4546

  • Brinell (HB) EN ISO 6506, ASTM E 10

  • 6 Position Turret

    A special feature of the EW-9000 is the motorised turret which comes as standard on each system. The turret can hold 3 different indenters and 3 objectives up to 40x magnification, or 6 different indenters on a PURE ROCKWELL model
    Combine the turret with an optional X-Y stage, a rotary table or inclination table and create the worlds most comprehensive 4 or 5 axis hardness testing system.
    Workpiece position is fixed. No hand wheels, no difficult supporting and no spindle to carry heavy parts. No wear and tear caused by heavy work pieces. No work load and no additional drive systems required.

    Protection, Safety, Online Systems

    EW-9000 intelligent sensor systems will register any irregular or unusual forces being applied to the turret, and will stop the test head from descending. In this way the system cannot cause injuries. No significant force is applied when any of the objectives are in viewing position.
    The EW-9000 test head with force actuator, with or without turret, can be used in on-line structures or integrated in to production lines requiring automatic testing procedures. The newly developed optical system allows stunning, high definition indent magnification (0.7x to 1000x). Refined algorithms guarantee accurate automatic measurement.

    EW-9000 Firmware

    EW-9000 Firmware is the advanced user operating system of the EW-9000 Series. The software incorporates, manual and automatic measurement for all scales, image editing, file storing, image storing, report printing, turret operation, manual or automatic focussing and many other advanced functions.
    The firmware converts to 3 different hardness (and tensile) scales simultaneously. The conversions can be set to material and standard (ISO/ASTM).
    The system also controls an (optional) X-Y stage, rotary or inclining table that can be plugged into the standard built-in driver of the tester. No additional charges, no external devices.
    In combination with an X-Y stage the tester offers the option of running case depth hardness programs, pre defined testing patterns and/or other specific or special tasks defined by the user.
    All data can be copied or exported in to MS applications like Word, Excel, or a report generator that emails test results directly to your workstation, or server. All data can be accessed over the LAN or WLAN connections.
    Anvils, Test Tables, Special Indenters
    Each EW-9000 is supplied with a standard set of test anvils and work tables. Each set includes 1 V-groove anvil, 1 flat anvil 80mm, 1 large round testing table ø200mm.
    Additionally, you can opt for a large range of specific anvils such as a spot anvil, set of V-groove anvils, tungsten alloy or diamond surface anvils.
    The tester can be equipped with a furnace or cooling unit to test work pieces under high or low temperature. Robot work piece loading and unloading can be supported by the built-in industrial computer.
    To support large work pieces or cylinder blocks you can opt for the (350mm x 250mm) large working stage that incorporates T-grooves for solid work piece fixing.
    X-Y Stages, Rotary Tables, Inclination Devices
    Being Universal means being ready for any task. The EW-9000 can be equipped with a variety of X-Y stages suitable for different applications. Different test forces require different specifications of the X-Y stages. Size, test load and positioning accuracy can be offered according to your particular requirement.
    CNC rotary tables and inclining testing tables are available depending on the complexity of your work pieces.

    Optional Accessories

  • Large testing table 350mmx250mm with T-grooves

  • Extra large testing table 450mmx350mm with grooves and support

  • Long bar supports, to ease testing long bars

  • Motorised X-Y stages, motorised rotary or tilting tables

  • Built-in 5 axis support driver

  • Certified indenters and reference blocks (DKD, UKAS, ASTM)


Code Size
EW-9001 1kgf to 250 kgf Universal
EW-9002 3kgf to 750kgf Universal
EW-9003 10kgf to 3000kgf Universal
EW-9004 0.05kgf to 150kgf Pure Rockwell
EW-9005 0.5kgf to 120kgf Pure Vickers
EW-9006 10kgf to 3000kgf Pure Brinell
