Đồng hồ đo độ dày 0-30mm
Độ chia 0.1mm
Made in Germany
Model: K200

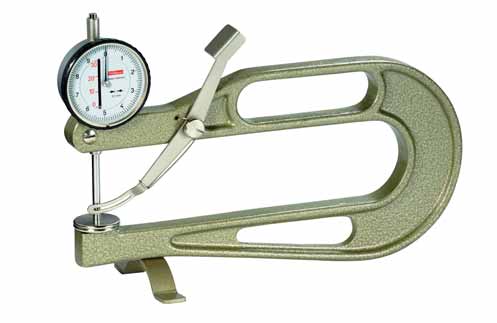

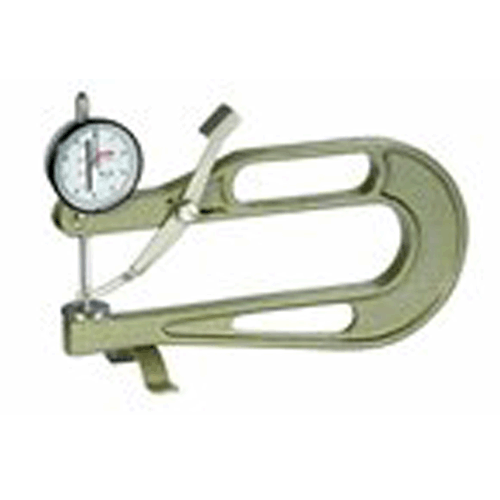

Dial Thickness Gauge K 200
The Dial Thickness Gauge K 200 possesses a lifting device and thus the contact force is independent of the user.
For the model K 200 in standard version the contact force is 1.8 N. Specials with increased or reduced contact force are available on request with values listed in the table below the illustration.
|
|
K 200 |
|
Reading |
0.1 mm |
|
Range |
30 mm |
|
Range per revolution |
10 mm |
|
Bezel-Ø |
58 mm |
|
Depth of jaw |
200 mm |
|
Accuracy according to |
manufacturing standard 0.0100.9.0004,
hysteresis fu however not checked |
|
Standard contact point |
form c |
|
Optional contact points |
forms a, b, d or e |
