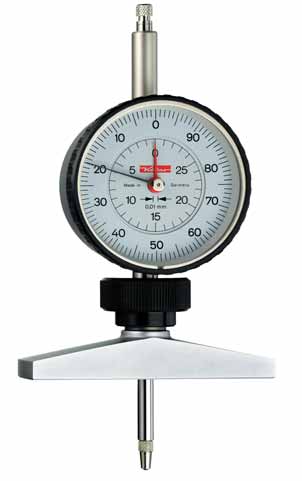

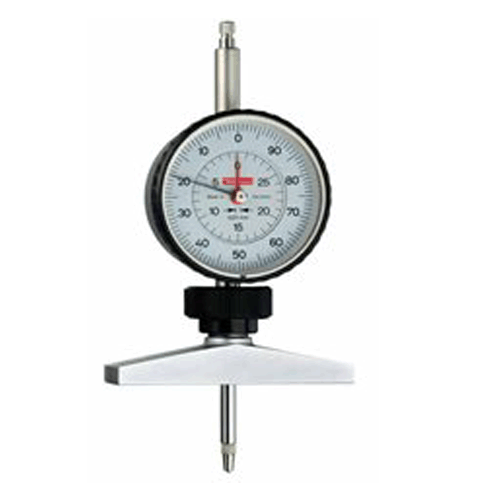

The concentric millimetre pointer allows easy and safe reading of the Dial Depth Gauge TM 2/30.
It is supplied completely mounted with contact point 573/21 and base TB 80.
Spare Dial Depth Gauges are supplied with contact points 573/21, but without base
|
|
TM 2/30 |
|
Reading |
0.01 mm |
|
Range |
30 mm |
|
Range per revolution |
1 mm |
|
Bezel-Ø |
58 mm |
|
Base dimensions |
80 x 16 mm |
|
Accuracy to |
manufacturing standard 1.0200.9.0014
hysteresis fu however not checked |
|
Dial numbering |
anti-clockwise |
