The base is matt chromed, hardened and lapped.
The metal collet attachment guarantees reliable fixing of the Dial Gauge. An additional internal hexagon screw makes exchanging the Dial Gauge easier.

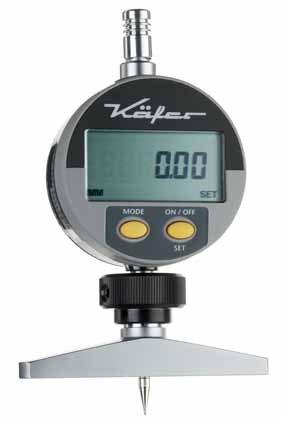

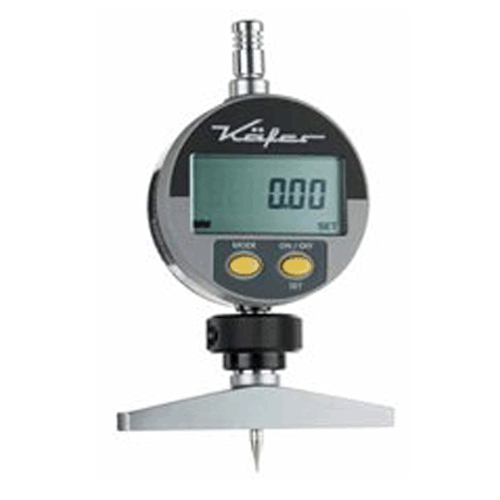

The Digital Depth Gauge TMD 12 is supplied completely mounted with base TB 80 and the 12 mm long contact point 573/18 with a ball Ø of 1 mm.
|
|
TMD 12 |
TMD 25 |
|
Resolution |
0.01 mm / .0005” |
0.01 mm / .0005" |
|
Range |
12.5 mm / .5” |
25 mm / 1.00” |
|
Digital display LCD, height of digits |
8.5 mm |
8.5 mm |
|
Measuring system |
inductive |
inductive |
|
Power supply |
on Lithium battery 3V |
on Lithium battery 3V |
|
Battery life |
3000 h |
3000 h |
|
Output |
RS 232, optoelectronic / USB |
RS 232, optoelectronic / USB |
|
Working temperature |
+5 °C up to + 40 °C |
+5 °C up to + 40 °C |
|
Maximum error |
10 μm / .0004” ± 1 Digit |
10 μm / .0004” ± 1 Digit |
