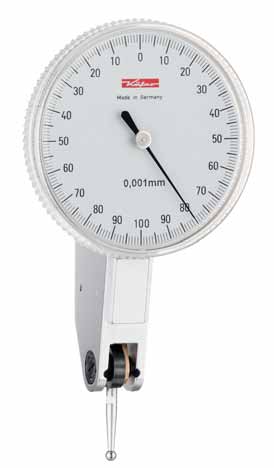

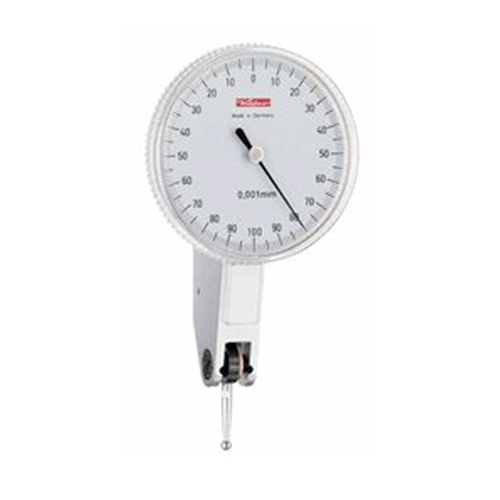

Model K 49 AD possesses a water-protected dial casing. The transparent front cover, made from resistant plastic, produces a good seal of the dial casing only conforming to protection class IP 53. Another advantage of this design is that the antireflective
coating of the front cover reduces shadows on the dial face and makes model K 49 AD easy to read.
|
|
K 49 AD |
|
Reading |
0.001mm |
|
Range |
0.2mm |
|
Dial reading |
0 - 100 - 0 |
|
Bezel-Ø |
40mm |
|
From to DIN 2270 |
A |
|
Dimension and accuracy according to |
DIN 2270 |
|
Length of contact point |
12.8mm |
|
Swivelling range of contact point at 90°to the scale |
240° |
|
Dimensioned drawing |
on request |
