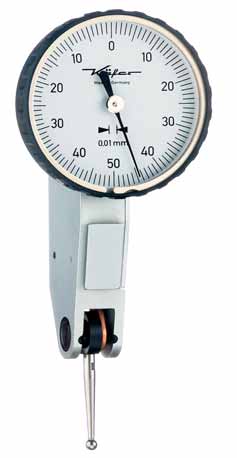

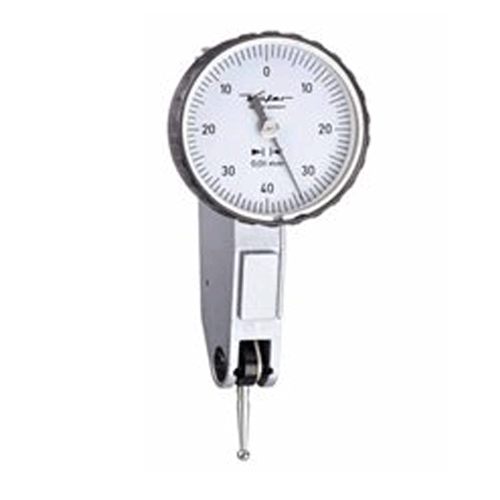

The extended range of 1 mm with model K 30/1 offers an even wider field of application than the standardized models to DIN 2270 with 0.8 mm range.
Even with the extended range of 1 mm its deviation spans conform to DIN 2270.
|
|
K 30/1 |
|
Reading |
0.01mm |
|
Range |
1.0mm |
|
Dial reading |
0 - 50 - 0 |
|
Bezel-Ø |
32mm |
|
From to DIN 2270 |
A |
|
Dimension and accuracy according to |
DIN 2270 |
|
Length of contact point |
16.6mm |
|
Swivelling range of contact point at 90°to the scale |
240° |
|
Dimensioned drawing |
on request |
