Chi tiết sản phẩm
Bàn đo chi tiết nhỏ
Mã sản phẩm: bàn đo chuyên dùng đo chi tiết nhỏ
Nhà sản xuất: Bowers
Xuất xứ: UK
Giá:
00 vnđ
Tình trạng: Sale
-

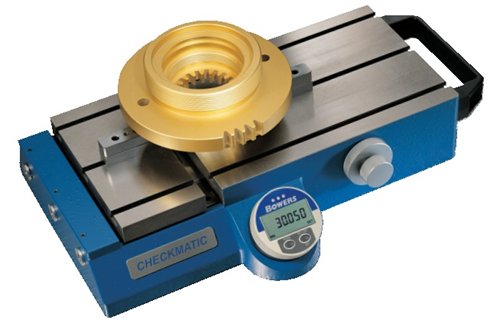

Checkmatic Universal Bench Fixture
The Bowers Checkmatic is a universal comparator gauge with a built in multifunction digital display. This versatile gauge can be confi gured in a multitude of ways, facilitating the rapid, accurate, internal or external gauging of both simple and complex components. A comprehensive range of accessories is available for the Bowers Checkmatic,alternatively special accessories can be designed for more specialised applications.
Features:
Optional integral electronics
0.01/0.001mm (0.0005”/0.00005”) switchable resolution
Inch – Metric conversion
Preset
Preset recall
Zero settings
Memory hold
Ref 1 & Ref 2 memories
Min/Max
Tolerance input
RS-232 output
1 year battery life
Three T-slots for mounting measuring accessories and contacts
Nominal 15mm table travel
Reversible measuring force
Variable measuring force 7-9n
Robust construction
Central fl oat position
Caged ball technology
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
