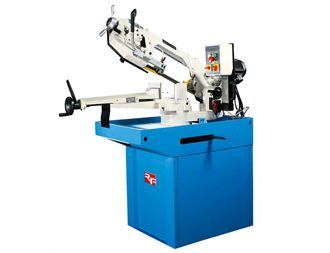

Máy cưa vòng

Description:

• Cutting angle from 0 degree to 60 degree.
• Adjustable blade guide for high precision and long blade life
• Stand jointed with water pan for collecting chip and water
• Coolant system for wet cutting.
• With Bi-metal blade, chip brush and length stop set
• Hydraulic tension meter for optional selection.
• Fully adjustable hydraulic downfeed controls the rate of descent for optional selection.
• Variable speed on RF-270V

CUTTING CAPACITY
0°		225 mm ( 8 3/4" )
		240 x 160 mm ( 9 3/8" x 6 1/4" )
		200 x 200 mm ( 7 7/8" x 7 7/8" )
45°		160 mm ( 6 1/4 " )
		155 x 115 mm ( 6 1/8" x 4 1/2" )
		140 x 140 mm ( 5 1/2" x 5 1/2" )
-60°		90 mm ( 3 1/2" )
		90x 100 mm ( 3 1/2" x 3 7/8" )
		90x 90 mm ( 3 1/2" x 3 1/2" )

	1.5HP
	3Φ (270V 1Φ only)
	Mt/min 60HZ/42-84 50HZ/35-70
	Ft/min 60HZ/138-276 50HZ/115-230
	mm W X T X L / 27 x 0.9 x 2460
	inch W X T X L/ 1.06 X 0.035 X 96.9
	mm L X W X H / 1350 x 700 x 1326
	inch L X W X H/ 53.15 x 27.56x 52.2
	kgs 210/240
	lbs 621/528
	mm L X W X H/ 1494X 787 X 978
	inch L X W X H/ 58.8 X 31 X 38.5
	20' 48SETS(SKD)
